- 8 inch capacitive Usb Screen Raspberry Pi: kugwiriskira ncito kwa mafakitale pacoko waka, Glass + Glass, anti eantrant - jamming nchito, wovwiri wapadera --AG AR AF, na cypress touch uproverler ic ungawovwira nchito ya glove, nchito ya maji na kugwira ntchito kwakukhola, chomenechomene vikugwiriskirika nchito mu vipangizo vya kuwaro, vipangizo vya mafakitale, vyachipatala, vyachipatala vipangizo na vipangizo vyakugwiriskira ncito pa nyumba vyamahara, vingawovwira kusintha kwakuya, kusazgapo vigaŵa vya kapangikiro na wovwiri wapadera wa pa caru capasi;
-Ichi 8-inch capacitive touch module chinthu, na malo gha galasi la 3mm, lingakwaniska kukwaniska vigaŵa vya mayeso vya IK8, lili na kukana kuwemi, chiwoneskero ni RGB, ndipo ungweru wa kumanyuma, chigaŵa chikuzomerezga ndondomeko ya kukolerana kwa mphepo, mtundu wa skrini ya kukhwaska ni IIC, yikuzomerezga nthowa yiwemi chomene yakulimbana nayo, Ili na ntchito yiwemi chomene yakulimbana nalo. ndiyo njakwenelera comene ku mapulogalamu ghanyake na malo ghakusuzga ghakugwiriskira ncito, ndipo malo ghakugwiriskira ncito ghali ghakuru comene.

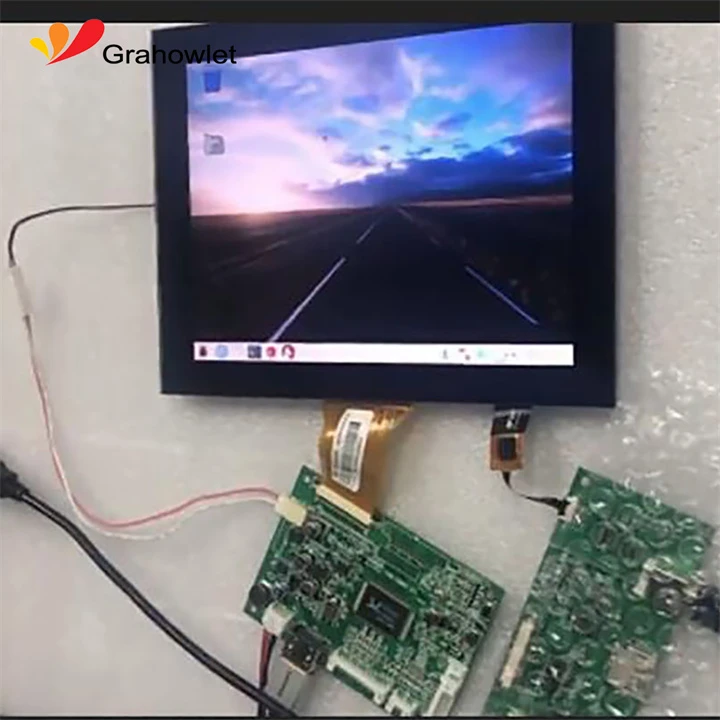

- 8 inch capacitive touch screen yingachitika na .Raspberry Pi na USB na HDMI interface, capacitive touch panel na 6pins IIC interface,se tingapeleka "IIC TO USB" bolodi; 8 inch TFT LCD Screen na RGB interface, tingapereka "RGB TO HDMI" driver dalaivalo.
| Nambala ya chiyelezgero | HX0801804 V1.0 | PCAP Nambala | HX08018303 |
| Burandi | nda | Mtundu wa pakati | vya I2C / US. |
| Saizi | 8.0 inch | Ndondomeko | Gasis + Galasi |
| Kugwira ntchito | -20 degree- 70 digiri | IC | CYTMA5668 |
| Kusunga nyengo | -30 degree- 80 digiri | khwaska Mafundo | 1~10 10 point |
| Kukhozga nchito | Kukhozga Mpweya | Kuguliska Nkhongono | 2.8V - 3.3V |
| Kulongosora umo vigaŵa | 193.00(W)x151.00(H)x10.45(D) mm | Nambala ya TFT | HX080NA-06A-33B |
| Malo ghakuwonera | 163.00(W)x122.50(H) mm | Kumaliska | 800x600 |
| Malo ghakuchitiska | 161.00(W)x121.50(H) mm | Mtundu wa pakati | RGB / HDM / VGA |
| Nthowa zakovwira | Mawindo / Android / Linux etc. | Luwaya | 900 cd / etc . |
| arranty | 1 chilimika | Kuwona Angle | 70/70/50/70 |
Q&A ya tekinoloje
F: Kasi pali fundo yiliyose yakukhwaskana na capacitive touch module solutoin iyo yikugwiriskirika nchito mwaluŵiro na pirpberry pi na piyandi ya olenji?
A: Tili na milandu yinyake yakukhwima ndipo nthowa yiwemi chomene njakuti tilumikizge chithuzithuzi cha kukhwaska mwaluŵiro kwizira mu USB interface ku Raspberry Pi panji Pi ya olenji, ndipo chiwoneskero chingalumikizgika mwaluŵiro kwizira mu HDMI interface, nthowa iyi yankho lose lingakwaniskika kwizira mu pulagi na kuseŵera. Sikirini yikuru ya touch screen yizamupangika mwaluŵiro na USB interface, kukula kwakucepa kukupangika na IIC interface, ntheura tizamuchita ni kupereka bolodi ilo likusintha IIC kuŵa USB. kweni, ŵamakasitomala ŵakwenera kulumikizgana na ŵasayansi ŵithu kuti ŵawone umo vinthu vikwendeskekera na umo mapulogiramu ghakupangikira. Kuti tiwoneske, tingapereka GGB ku HDMI, LVDS ku HDMI, MPI ku HDMI, EDP ku HDMI na mabodi ghanyake ghakwendeska kuti ŵamanye kukolerana na Raspberry Pi na pi pi pi;
F: Kasi ni fundo wuli iyo yikupangiska kuti munthu waŵe na mwaŵi wa kukhwaska pa capacitive kuti wafiske vinandi -couch?
A: Para chala chikukhwaska chithuzithuzi cha capacitive, chikukhwaska kuphatikizgika pakati pa ma electrode ghaŵiri pafupi na malo ghakukhwaska, ntheura kusintha kwa capacitance pakati pa ma electrode ghaŵiri. Para mwamanya kuti pali nkhongono, ma electrode ghakunjilirapo ghakufumiska vimanyikwiro vya kukhuŵazga, ndipo ma electrode ghose gha utali ghakupokera vimanyikwiro pa nyengo yimoza, mwakuti vigaŵa vyose vya capacitance vya vyose vya vigaŵa vyakunjilirapo vya vigaŵa vyakunjilirapo na vya utaliko vingasangika, ndiko kuti, nkhongono ya ndege ziŵiri {{-} ndege yose ya kukhwaska. Malinga na viŵiri {{{{il}}} vyakugwiriskira ncito vya kusintha kwa mtundu wa skrini yakukhwaska, ma coordinates gha malo ghakukhwaska ghaliyose ghangaŵerengeka. Ndiko kuti, multial- point coordinats angaŵerengeka kuti ŵamanye multi- thouch;
